PUNQTUM Q-SERIES HIRE.

PunQtum is digital partyline on an ordinary network cable, with no master station. Beltpacks are powered down the cable and daisy-chained from one to the next.

A system is beltpacks and a Q210 speaker station. The station gives one person four channels and a loudspeaker, its built-in switch powers the beltpacks, and it is where programme feeds and four-wire links come in.

PunQtum Q110 two-channel digital partyline beltpack, showing display and controls

PunQtum

Q110 BELTPACK

A two-channel digital beltpack on a network cable. It takes any two of the system’s 32 partylines, names them on a colour display, and plays back the last message for anyone who missed it. Power comes down the cable and carries on to the next beltpack.

  • Two channels from 32 partylines
  • Replays up to 30 seconds of what was missed
  • Daisy-chained, up to eight on one cable
  • Sealed to IP53
Request a quotation →
Channels
2 at once, from 32 partylines
Controls
2 talk, 2 call, 2 rotary encoders, replay
Display
Colour, dimmable, sunlight-readable
Message replay
Up to 30 seconds
Headset connector
4-pin male XLR
Microphone
Dynamic or electret
Programme input
One of 4, from a speaker station

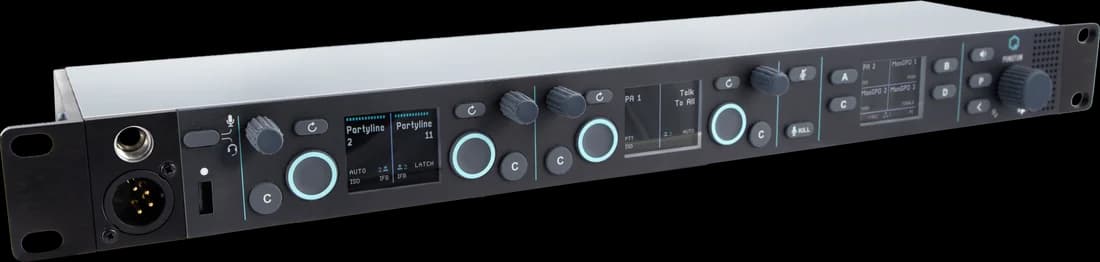

PunQtum Q210 P four-channel speaker station, 1U rack unit

PunQtum

Q210 P SPEAKER STATION

Four channels in one rack unit, with a four-port network switch built in. Two of its ports supply power, each to four beltpacks daisy-chained, so one station runs eight.

  • Powers eight beltpacks from its own switch
  • Two programme inputs and two outputs
  • Two four-wire links to other systems
  • Links to Riedel Bolero on one cable
Request a quotation →
Channels
4
Controls
Talk, call, replay and level for each channel
Display
Colour, in three sections
Loudspeaker
Built in, 5 W
Headset connector
4-pin male XLR
Gooseneck
6.3 mm jack with thread

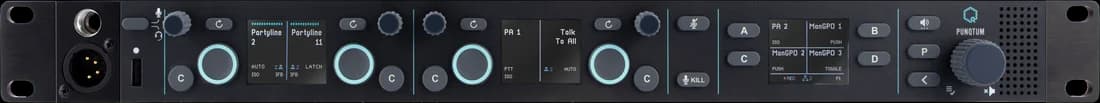

PunQtum Q210 speaker station, front panel

PunQtum

Q210 PW WITH PHONE USERS

The same station, with four places for people on their phones. The free PunQtum app turns a phone into a two-channel beltpack over the site’s Wi-Fi. It uses a Wi-Fi access point on the network; the station has no radio of its own.

  • Four phone users through the PunQtum app
  • Each phone works as a two-channel beltpack
  • Everything the Q210 P does
  • Needs a Wi-Fi access point on the network
Request a quotation →
Channels
4
Controls
Talk, call, replay and level for each channel
Display
Colour, in three sections
Loudspeaker
Built in, 5 W
Headset connector
4-pin male XLR
Gooseneck
6.3 mm jack with thread

WORKS WITH

The equipment this is usually hired with.

PunQtum Q915 single-ear intercom headset

PunQtum

Q915 & Q925 HEADSETS

Single and double ear headsets with a dynamic microphone, on a 4-pin XLR.

Specifications →
Riedel Bolero 1.9 GHz DECT wireless intercom beltpack, front view

Riedel

BOLERO SYSTEM

Six-key wireless beltpacks, the antennas that cover the site and the charger, on 1.9 GHz DECT and 2.4 GHz.

Specifications →
Netgear AV Line M4250-9G1F-PoE+ desktop switch, front view showing eight PoE+ ports and uplinks

Netgear

M4250-9G1F-PoE+

A fanless desktop switch with eight PoE+ ports, a ninth copper port and an SFP uplink.

Specifications →

MORE IN WIRED INTERCOM

Riedel Performer C3 two-channel digital partyline beltpacks, front and rear

Riedel

PERFORMER C3

Two-channel digital partyline beltpacks on ordinary XLR cable, with the interface that powers them.

Specifications →
Clear-Com HelixNet HXII-BP-4K four-channel digital partyline beltpack

Clear-Com

HELIXNET

Digital partyline on the cable a venue already has: beltpacks, a rack station and the Arcadia that hosts them.

Specifications →
Clear-Com Encore RS-701 single-channel analogue partyline beltpack

Clear-Com

ENCORE

Analogue partyline on microphone cable: one and two-channel beltpacks and the main station that powers them.

Specifications →

All wired intercom →Everything from PunQtum →

  • Specifications are the manufacturers’ published figures and can change with hardware and firmware revisions. Product names and trade marks belong to their owners.
