HELIXNET HIRE.

HelixNet is digital partyline that runs on the cable a venue already has. Beltpacks take audio and power down a single microphone cable, or connect to the network and run from PoE.

A system is beltpacks and stations, hosted by an Arcadia Central Station.

Clear-Com HelixNet HXII-BP-4K four-channel digital partyline beltpack

Clear-Com

HELIXNET BELTPACK

HXII-BP-4K

A four-channel digital beltpack with a talk key and a call key for each channel, and a display that names them.

  • Four channels on four keysets
  • Microphone cable or network cable
  • Sealed to IP53
Request a quotation →
Channels
4 keysets
Connection
3-pin XLR Powerline, or etherCON RJ45
Power
Powerline, or PoE 802.3af
Headset connector
4-pin male XLR, or 5-pin female XLR
Frequency response
40 Hz to 10 kHz to the headphones
Ingress protection
IP53
Dimensions
99 × 135 × 43 mm (W × H × D)
Weight
0.35 kg

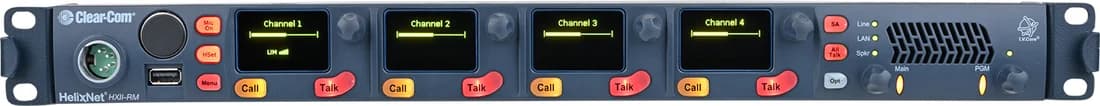

Clear-Com HelixNet HXII-RM remote station, 1U front panel

Clear-Com

HELIXNET REMOTE STATION

HXII-RM

The rack station: four channels on four displays, with a loudspeaker and a headset socket.

  • Four channels, expandable to 24
  • PoE, Powerline or its own supply
Request a quotation →
Channels
4 keysets; up to 24 with expansion
Headset connector
4-pin male XLR
Power
PoE 802.3af, Powerline, or 48 V DC supply
Rack height
1U
Dimensions
483 × 44 × 165 mm (W × H × D)
Weight
1.8 kg
Clear-Com Arcadia Central Station, front panel

Clear-Com

ARCADIA CENTRAL STATION

The 1U core of a current Clear-Com system. One unit hosts FreeSpeak wireless on all three bands, HelixNet wired stations and keypanels, and connects to partyline, four-wire and Dante.

Request a quotation →
Licensed ports
16 to 200
FreeSpeak beltpacks
Up to 64 across 1.9, 2.4 and 5 GHz
IP transceivers
Up to 32
HelixNet
Up to 24 channels and 128 user stations
Dante ports
Up to 64
Channels, groups and roles
100 channels, 100 groups, 300 roles

WORKS WITH

The equipment this is usually hired with.

Clear-Com CC-300 single-ear intercom headset

Clear-Com

CC SERIES HEADSETS

Single and double ear, standard and lightweight, with a microphone that mutes when the boom is lifted.

Specifications →
Clear-Com Arcadia Central Station, front panel

Clear-Com

ARCADIA CENTRAL STATION

The 1U core of a current Clear-Com system.

Specifications →
Netgear AV Line M4250-9G1F-PoE+ desktop switch, front view showing eight PoE+ ports and uplinks

Netgear

M4250-9G1F-PoE+

A fanless desktop switch with eight PoE+ ports, a ninth copper port and an SFP uplink.

Specifications →
Clear-Com Encore IF4W4 four-channel four-wire interface, 1U front panel

Clear-Com

IF4W4 INTERFACE

Four interfaces in one rack unit, each joining a four-wire circuit to a Clear-Com partyline: a camera’s intercom, a two-way radio, a fibre link.

Specifications →

MORE IN WIRED INTERCOM

Riedel Performer C3 two-channel digital partyline beltpacks, front and rear

Riedel

PERFORMER C3

Two-channel digital partyline beltpacks on ordinary XLR cable, with the interface that powers them.

Specifications →
Clear-Com Encore RS-701 single-channel analogue partyline beltpack

Clear-Com

ENCORE

Analogue partyline on microphone cable: one and two-channel beltpacks and the main station that powers them.

Specifications →
Green-GO Beltpack X wired intercom beltpack

Green-GO

BELTPACK X

Digital partyline on a network cable: the beltpack, the rack interface and the signal light.

Specifications →

All wired intercom →Everything from Clear-Com →

  • Specifications are the manufacturers’ published figures and can change with hardware and firmware revisions. Product names and trade marks belong to their owners.
