RIEDEL NSA HIRE.

A Network Stream Adapter puts analogue audio on the network that Bolero and Artist run on. It is how a Bolero system working on its own meets a mixing console, a programme feed or somebody else’s intercom.

The NSA-002A carries four-wire circuits. The NSA-003A carries two-wire partyline, so an existing Clear-Com or RTS system joins the network as it is.

Riedel NSA-002A Network Stream Adapter, front panel with XLR inputs and outputs

Riedel

NSA-002A FOUR-WIRE

Six analogue inputs and six outputs to AES67, with control contacts. Cabled to a Bolero antenna it gives a stand-alone Bolero system its connections to the outside; on a network it does the same for a larger one.

  • Six four-wire circuits in and out
  • Plugs straight into a stand-alone Bolero system
  • Three control inputs and three outputs
  • Runs from the mains or from PoE, with no fan
Request a quotation →
Inputs
6 balanced, on 3-pin XLR
Outputs
6 balanced, on 3-pin XLR
Levels
+6 dBu nominal, +24 dBu maximum
Frequency response
20 Hz to 20 kHz
Signal to noise
Over 100 dB
Resolution
24 bit

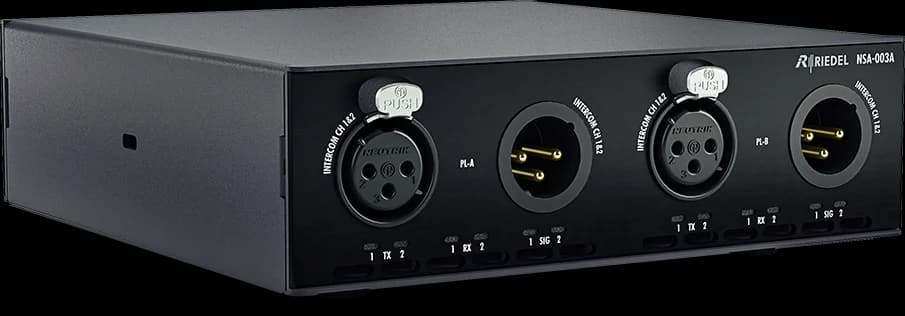

Riedel NSA-003A partyline Network Stream Adapter

Riedel

NSA-003A PARTYLINE

Two partyline interfaces to the network. An existing two-wire system, Clear-Com or RTS, connects as it is and appears on Bolero beltpacks and Artist panels, with call signalling carried both ways.

  • Two independent partyline interfaces
  • Clear-Com or RTS, selected on the unit
  • Nulls itself automatically
  • Powered from the network, from either port
Request a quotation →
Interfaces
2, each on 3-pin XLR with loop-through
Systems
Clear-Com or RTS two-channel, with call signalling
Nulling
Automatic, up to 50 dB
Level
+6 dBu maximum
USB audio
2 channels in and out, USB-C

WHICH ADAPTER

ADAPTERCARRIESCONTROLPOWERSIZE
NSA-002A6 four-wire circuits in, 6 out3 in, 3 outMains or PoE218 mm wide, 1.77 kg
NSA-003A2 two-wire partylines3 in, 3 outPoE only145 mm wide, 1.1 kg
