DANTE AVIO ADAPTER HIRE.

Two channels of analogue audio on or off a Dante network, for the places a rack interface will not go: a programme feed from a desk, a send to a loudspeaker, a pair of lines to a broadcaster.

They are line level, take their power from a PoE switch, and are set up in Dante Controller.

Dante AVIO two-channel analogue input adapter, with two female XLR connectors

Audinate

DANTE AVIO ANALOGUE INPUT, 2 CHANNEL

ADP-DAI-AU-2X0

Puts two channels of balanced line-level audio onto a Dante network.

  • Two female XLRs on cable tails
  • Line level, up to +24 dBu
  • Powered by the network cable
Request a quotation →
Channels
2 in
Connectors
2 × female XLR, and RJ45
Input
Balanced line level
Maximum level
+24 dBu, +4 dBu, 0 dBu, 0 dBV or −10 dBV, set in Dante Controller
Input impedance
20 kΩ balanced, 10 kΩ unbalanced
Frequency response
20 Hz to 20 kHz, ±0.5 dB
Dynamic range
More than 100 dB
Distortion
Less than 0.01% at +4 dBu

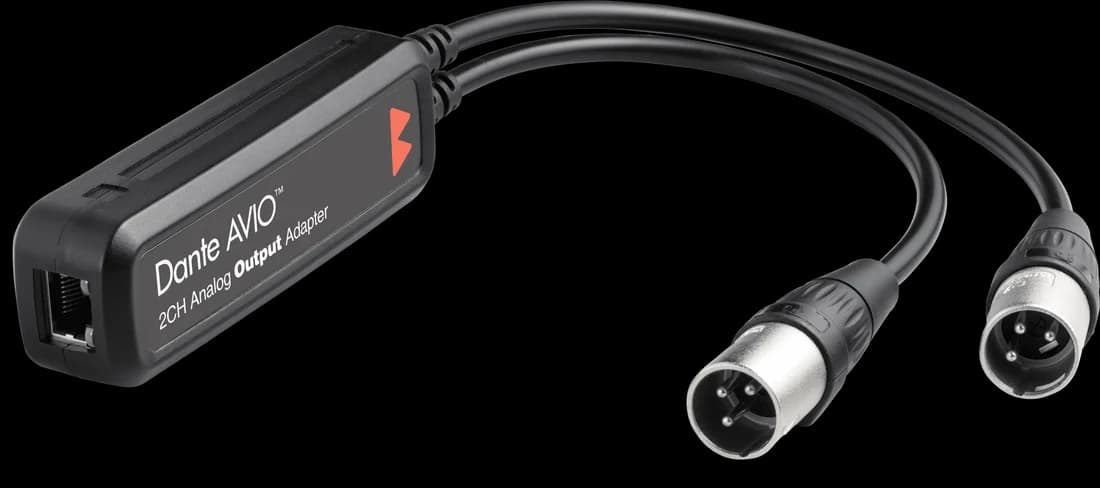

Dante AVIO two-channel analogue output adapter, with two male XLR connectors

Audinate

DANTE AVIO ANALOGUE OUTPUT, 2 CHANNEL

ADP-DAO-AU-0X2

Takes two channels from a Dante network and gives them as balanced line-level audio.

  • Two male XLRs on cable tails
  • Line level, up to +18 dBu
  • Powered by the network cable
Request a quotation →
Channels
2 out
Connectors
2 × male XLR, and RJ45
Output
Balanced line level
Maximum level
+18 dBu, +4 dBu, 0 dBu, 0 dBV or −10 dBV, set in Dante Controller
Frequency response
20 Hz to 20 kHz, ±0.5 dB
Dynamic range
More than 100 dB
Distortion
Less than 0.01% at +4 dBu

WORKS WITH

The equipment this is usually hired with.

Netgear AV Line M4250-9G1F-PoE+ desktop switch, front view showing eight PoE+ ports and uplinks

Netgear

M4250-9G1F-PoE+

A fanless desktop switch with eight PoE+ ports, a ninth copper port and an SFP uplink.

Specifications →
Neutrik NA2-IO-DPRO two-in two-out Dante interface in its rubber protector

Neutrik

NA2-IO-DPRO

Two inputs and two outputs on Dante, in a box small enough to sit on a stage or hang on a truss.

Specifications →
CTP Systems DIO0808MA-XLR Dante interface, front panel with eight XLR inputs and eight XLR outputs

CTP Systems

DIO0808MA-XLR

Eight microphone or line inputs and eight line outputs on XLR, straight onto Dante, in one rack unit.

Specifications →
Green-GO Dante X interface between Dante and Green-GO, 1U rack unit

Green-GO

DANTE X

Green-GO to Dante and back, without going through analogue.

Specifications →

MORE IN AUDIO INTERFACES

Riedel NSA-002A Network Stream Adapter, front panel with XLR inputs and outputs

Riedel

NETWORK STREAM ADAPTERS

Four-wire and partyline into AES67, for Bolero and Artist: the NSA-002A and NSA-003A.

Specifications →
Clear-Com Encore IF4W4 four-channel four-wire interface, 1U front panel

Clear-Com

IF4W4 INTERFACE

Four interfaces in one rack unit, each joining a four-wire circuit to a Clear-Com partyline: a camera’s intercom, a two-way radio, a fibre link.

Specifications →
Green-GO Interface X two-wire and four-wire audio interface, 1U rack unit

Green-GO

INTERFACE X

The interface between Green-GO and analogue audio.

Specifications →

All audio interfaces →Everything from Audinate →

  • Specifications are the manufacturers’ published figures and can change with hardware and firmware revisions. Product names and trade marks belong to their owners.
