FREESPEAK II HIRE.

FreeSpeak II is Clear-Com’s roaming wireless intercom. A beltpack moves from one transceiver to the next as its user walks the site, and the conversation carries on without a break.

It runs on the 1.9 GHz DECT band or on 2.4 GHz. The transceivers connect on CAT cable from the base station, or join the network as IP transceivers.

A system is beltpacks, transceivers and an Arcadia Central Station to host them.

Clear-Com FreeSpeak II 1.9 GHz wireless beltpack, front view

Clear-Com

FREESPEAK II BELTPACK

FSII-BP19 (1.9 GHz) · FSII-BP24 (2.4 GHz)

A full-duplex wireless beltpack that roams between transceivers as its user moves around a site. Available on the 1.9 GHz DECT band or on 2.4 GHz, with the same housing and controls.

  • Four keys and a reply key, with two rotary level controls
  • Up to five full-duplex audio paths
  • 18 hours or more from the Li-ion battery
  • Sealed to IP53
Request a quotation →
Keys
4 pushbuttons and 1 reply button
Audio paths
Up to 5, full duplex
Audio bandwidth
200 Hz to 7.5 kHz
Headset connector
4-pin male XLR; 5-pin and 7-pin options
Microphone
Electret or dynamic, selected in the menu
Battery
Li-ion, charged in a drop-in charger or by USB
Battery life
18 hours or more

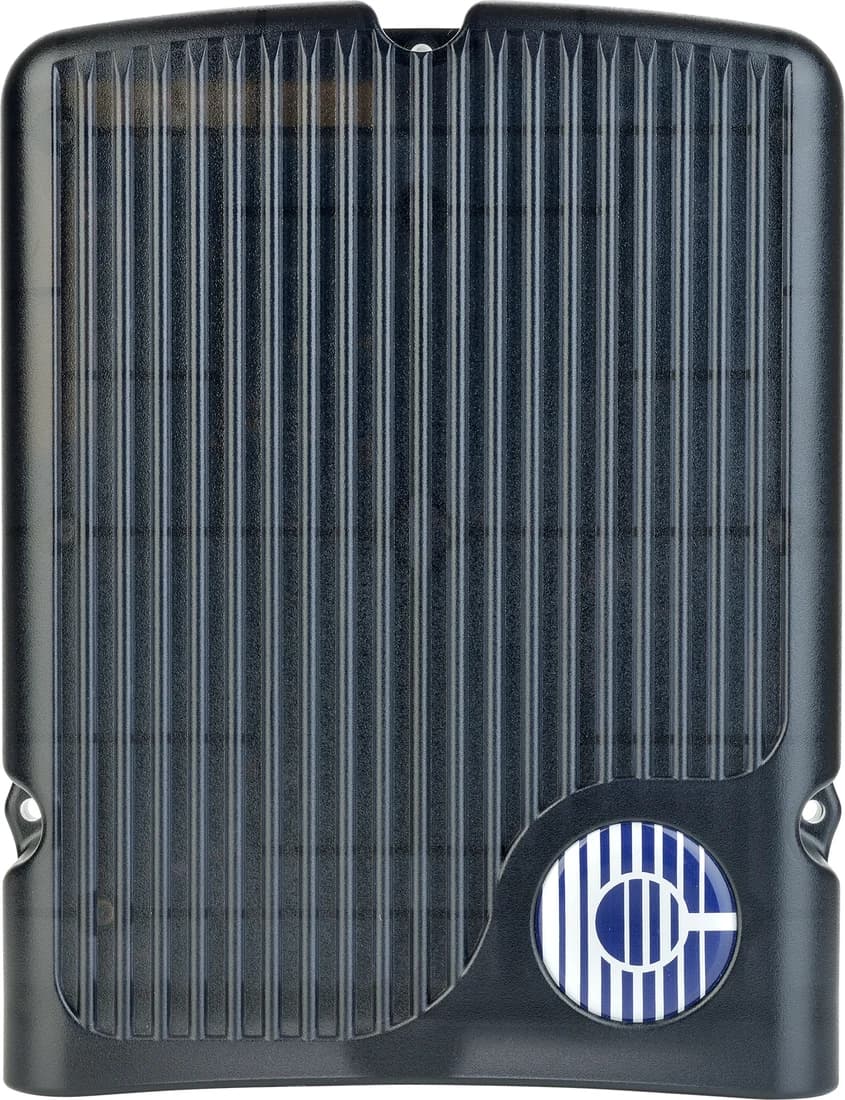

Clear-Com FreeSpeak II 1.9 GHz transceiver antenna

Clear-Com

FREESPEAK II TRANSCEIVER

FSII-TCVR-19 · FSII-TCVR-24 · FSII-SPL

The active antenna that gives the beltpacks their coverage. It runs on CAT cable from the base station, or from a splitter that feeds five transceivers from one port.

  • Five beltpacks on 1.9 GHz, four on 2.4 GHz
  • Powered down the cable, or locally for long runs
  • Up to 800 m from the base station
Request a quotation →
Beltpacks, 1.9 GHz
5
Beltpacks, 2.4 GHz
4
Frequency, 1.9 GHz
1880 to 1900 MHz, 10 channels
Frequency, 2.4 GHz
2.400 to 2.483 GHz
Connection
etherCON RJ45 to base station or splitter
Power
From the base station, or a local supply
Ingress protection
IP53
Weight
0.45 kg

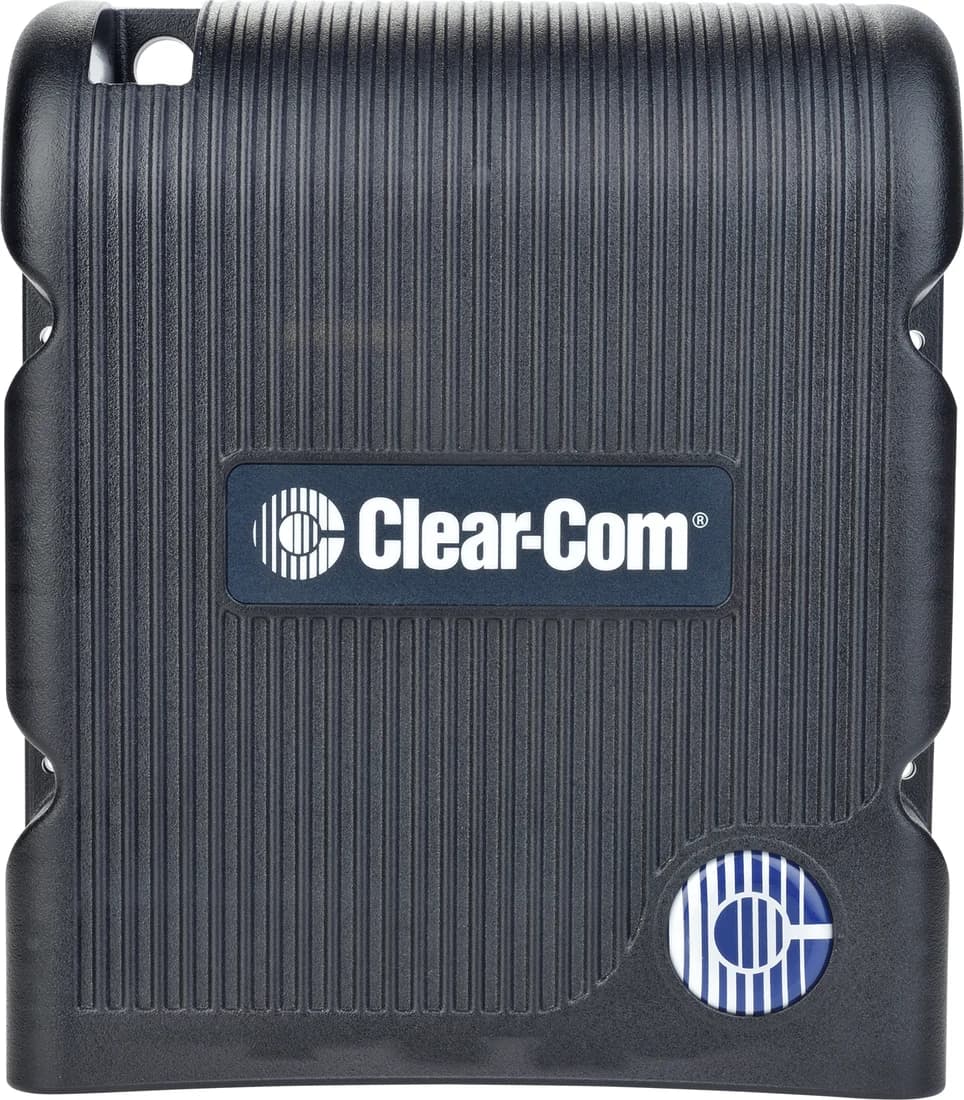

Clear-Com FreeSpeak II 1.9 GHz IP transceiver

Clear-Com

FREESPEAK II IP TRANSCEIVER

FSII-TCVR-IP-19

The network version of the transceiver. It joins an AES67 network on ordinary switches, takes its power from PoE, and carries twice the beltpacks of the standard transceiver.

  • Ten beltpacks on each transceiver
  • On the network, with no splitters
  • Powered by PoE
Request a quotation →
Beltpacks
10
Frequency
1880 to 1900 MHz, 10 carriers
Network
AES67 unicast streams, PTP synchronised
Connections
2 × RJ45, 1 × SFP
Power
PoE 802.3af, 12 V DC supply or USB
Works with
Arcadia and Eclipse HX
Ingress protection
IP53
Dimensions
217 × 192 × 64 mm
Weight
1.0 kg
Clear-Com Arcadia Central Station, front panel

Clear-Com

ARCADIA CENTRAL STATION

The 1U core of a current Clear-Com system. One unit hosts FreeSpeak wireless on all three bands, HelixNet wired stations and keypanels, and connects to partyline, four-wire and Dante.

Request a quotation →
Licensed ports
16 to 200
FreeSpeak beltpacks
Up to 64 across 1.9, 2.4 and 5 GHz
IP transceivers
Up to 32
HelixNet
Up to 24 channels and 128 user stations
Dante ports
Up to 64
Channels, groups and roles
100 channels, 100 groups, 300 roles

WORKS WITH

The equipment this is usually hired with.

Clear-Com Arcadia Central Station, front panel

Clear-Com

ARCADIA CENTRAL STATION

The 1U core of a current Clear-Com system.

Specifications →
Clear-Com CC-300 single-ear intercom headset

Clear-Com

CC SERIES HEADSETS

Single and double ear, standard and lightweight, with a microphone that mutes when the boom is lifted.

Specifications →
Netgear AV Line M4250-9G1F-PoE+ desktop switch, front view showing eight PoE+ ports and uplinks

Netgear

M4250-9G1F-PoE+

A fanless desktop switch with eight PoE+ ports, a ninth copper port and an SFP uplink.

Specifications →
Clear-Com Encore IF4W4 four-channel four-wire interface, 1U front panel

Clear-Com

IF4W4 INTERFACE

Four interfaces in one rack unit, each joining a four-wire circuit to a Clear-Com partyline: a camera’s intercom, a two-way radio, a fibre link.

Specifications →

MORE IN WIRELESS INTERCOM

Riedel Bolero 1.9 GHz DECT wireless intercom beltpack, front view

Riedel

BOLERO SYSTEM

Six-key wireless beltpacks, the antennas that cover the site and the charger, on 1.9 GHz DECT and 2.4 GHz.

Specifications →
Clear-Com FreeSpeak Edge 5 GHz wireless beltpack

Clear-Com

FREESPEAK EDGE

Wireless intercom on 5 GHz: nine-key beltpacks, their transceivers and the Arcadia station that hosts them.

Specifications →
Green-GO Wireless Beltpack X DECT intercom beltpack

Green-GO

WIRELESS BELTPACK X

The Green-GO beltpack without the cable, and the antennas that connect it to the network.

Specifications →

All wireless intercom →Everything from Clear-Com →

  • Wireless range depends on the site. Clear-Com’s figures are typical values for one transceiver; coverage for a venue is designed around however many it needs.
  • Specifications are the manufacturers’ published figures and can change with hardware and firmware revisions. Product names and trade marks belong to their owners.
