FREESPEAK EDGE HIRE.

FreeSpeak Edge is Clear-Com’s 5 GHz wireless system. It moves intercom out of the crowded 1.9 and 2.4 GHz bands, carries wider audio, and gives each beltpack nine keys.

A system is beltpacks, IP transceivers and an Arcadia Central Station to host them.

Clear-Com FreeSpeak Edge 5 GHz wireless beltpack

Clear-Com

FREESPEAK EDGE BELTPACK

FSE-BP50

A nine-key beltpack with a colour display and two radios inside it, so that one carries on if the other meets interference.

  • Nine full-duplex audio paths on nine keys
  • Audio to 12 kHz
  • Two radios in every beltpack
  • AES256 encryption
Request a quotation →
Keys
9 pushbuttons, 5 level controls
Audio paths
9, full duplex
Audio bandwidth
200 Hz to 12 kHz
Latency
Under 35 ms; 60 ms beltpack to beltpack
Headset connector
4-pin male XLR; 5-pin and 7-pin options
Display
Colour TFT
Battery
Li-ion 4400 mAh, drop-in charger or USB-C
Battery life
12 hours

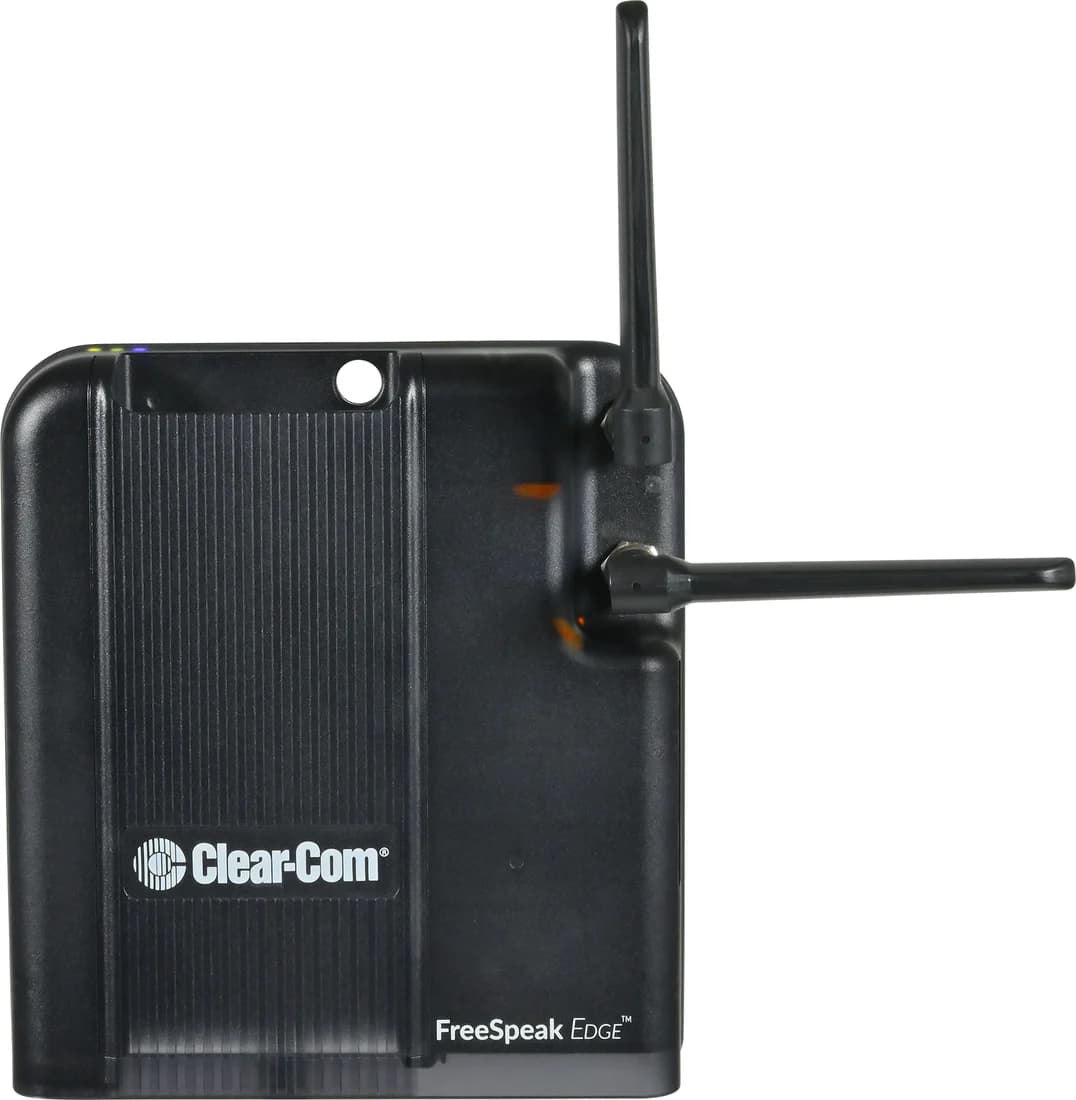

Clear-Com FreeSpeak Edge 5 GHz transceiver with antennas fitted

Clear-Com

FREESPEAK EDGE TRANSCEIVER

FSE-TCVR-50

The 5 GHz transceiver, carrying ten beltpacks. It sits on the network and runs from PoE.

  • Ten beltpacks on each transceiver
  • PoE up to 100 m
  • Network by RJ45 or fibre
Request a quotation →
Beltpacks
10
Frequency
5170 to 5875 MHz, channels set by country
Antennas
External 3 dB omni
Network
RJ45 and 1 Gb SFP
Power
48 V PoE up to 100 m, 12 V DC supply or USB
Ingress protection
IP53
Clear-Com Arcadia Central Station, front panel

Clear-Com

ARCADIA CENTRAL STATION

The 1U core of a current Clear-Com system. One unit hosts FreeSpeak wireless on all three bands, HelixNet wired stations and keypanels, and connects to partyline, four-wire and Dante.

Request a quotation →
Licensed ports
16 to 200
FreeSpeak beltpacks
Up to 64 across 1.9, 2.4 and 5 GHz
IP transceivers
Up to 32
HelixNet
Up to 24 channels and 128 user stations
Dante ports
Up to 64
Channels, groups and roles
100 channels, 100 groups, 300 roles

WORKS WITH

The equipment this is usually hired with.

Clear-Com Arcadia Central Station, front panel

Clear-Com

ARCADIA CENTRAL STATION

The 1U core of a current Clear-Com system.

Specifications →
Clear-Com CC-300 single-ear intercom headset

Clear-Com

CC SERIES HEADSETS

Single and double ear, standard and lightweight, with a microphone that mutes when the boom is lifted.

Specifications →
Netgear AV Line M4250-9G1F-PoE+ desktop switch, front view showing eight PoE+ ports and uplinks

Netgear

M4250-9G1F-PoE+

A fanless desktop switch with eight PoE+ ports, a ninth copper port and an SFP uplink.

Specifications →
Clear-Com Encore IF4W4 four-channel four-wire interface, 1U front panel

Clear-Com

IF4W4 INTERFACE

Four interfaces in one rack unit, each joining a four-wire circuit to a Clear-Com partyline: a camera’s intercom, a two-way radio, a fibre link.

Specifications →

MORE IN WIRELESS INTERCOM

Riedel Bolero 1.9 GHz DECT wireless intercom beltpack, front view

Riedel

BOLERO SYSTEM

Six-key wireless beltpacks, the antennas that cover the site and the charger, on 1.9 GHz DECT and 2.4 GHz.

Specifications →
Clear-Com FreeSpeak II 1.9 GHz wireless beltpack, front view

Clear-Com

FREESPEAK II

Roaming wireless beltpacks on 1.9 or 2.4 GHz, with their transceivers and the Arcadia station that hosts them.

Specifications →
Green-GO Wireless Beltpack X DECT intercom beltpack

Green-GO

WIRELESS BELTPACK X

The Green-GO beltpack without the cable, and the antennas that connect it to the network.

Specifications →

All wireless intercom →Everything from Clear-Com →

  • Wireless range depends on the site. Clear-Com’s figures are typical values for one transceiver; coverage for a venue is designed around however many it needs.
  • Specifications are the manufacturers’ published figures and can change with hardware and firmware revisions. Product names and trade marks belong to their owners.
