RIEDEL SMARTPANEL HIRE.

A SmartPanel is the keypanel for the people who run the show from a fixed position: the show caller, the production desk, the gallery. Every key is a lever with its own level control and a lit ring in the colour of its group, labelled on a touchscreen beneath it.

The 1200 Series comes as a 1U or 2U rack panel and as a desktop unit. All three connect to an Artist-1024 over the network, and to older Artist frames over AES3.

Riedel DSP-1216HL desktop SmartPanel with 16 lever keys and touchscreens

Riedel

DSP-1216HL DESKTOP

The desktop SmartPanel: sixteen lever keys in a wedge-shaped unit that sits on a production desk, with carrying handles and a three-way loudspeaker system so it can be used without a headset.

  • Built for the desk rather than adapted from a rack panel
  • Left, right and subwoofer loudspeakers
  • Two headset positions on the rear
  • VESA 75 mount for an arm or bracket
Request a quotation →
Keys
16
Key type
Hybrid lever keys, each with a rotary encoder, push button and LED ring
Labels
8-character label, 16-character sub-label and icon on every key
Level controls
Volume on every key; separate rotaries for main volume and sidetone
Displays
2 capacitive multi-touch colour screens, sunlight-readable

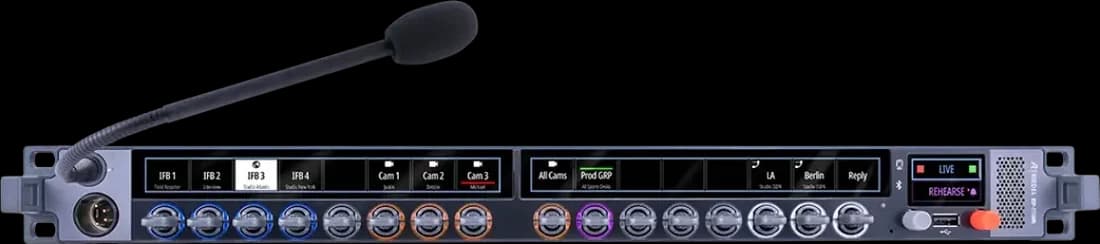

Riedel RSP-1216HL 1U rack SmartPanel with 16 lever keys, front view

Riedel

RSP-1216HL 1U RACK

Sixteen lever keys and three touchscreens in a single rack unit. It is 95 mm deep behind the rack ears, so it fits the shallow racks of a control position or a flight case lid.

  • 16 keys in 1U
  • Takes up to six 16-key expansion panels on an Artist-1024
  • Only 95 mm deep in the rack
Request a quotation →
Keys
16
Key type
Hybrid lever keys, each with a rotary encoder, push button and LED ring
Labels
8-character label, 16-character sub-label and icon on every key
Level controls
Volume on every key; separate rotaries for main volume and sidetone
Displays
3 capacitive multi-touch colour screens, sunlight-readable
Expansion
Up to 6 ESP-1216HL panels of 16 keys each

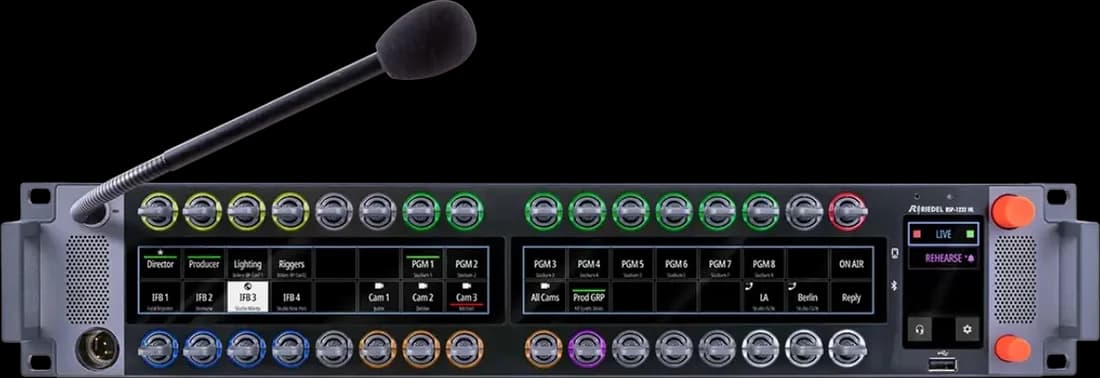

Riedel RSP-1232HL 2U rack SmartPanel with 32 lever keys and gooseneck microphone

Riedel

RSP-1232HL 2U RACK

The 32-key panel, for positions that talk to everyone. Two rack units carry two rows of lever keys above and below the screens, with stereo loudspeakers either side.

  • 32 keys in 2U
  • Stereo loudspeakers, 110 dB SPL
  • Takes up to six 16-key expansion panels on an Artist-1024
Request a quotation →
Keys
32
Key type
Hybrid lever keys, each with a rotary encoder, push button and LED ring
Labels
8-character label, 16-character sub-label and icon on every key
Level controls
Volume on every key; separate rotaries for main volume and sidetone
Displays
3 capacitive multi-touch colour screens, sunlight-readable
Expansion
Up to 6 ESP-1216HL panels of 16 keys each

WHICH PANEL

Expansion panels work with the rack panels on an Artist-1024. The desktop panel does not take them.
PANELFORMATKEYSSCREENSLOUDSPEAKERSWEIGHT
DSP-1216HLDesktop162Left, right and subwoofer2.5 kg
RSP-1216HL1U rack16312.3 kg
RSP-1232HL2U rack3232, stereo3.4 kg
